Straight Stairlift

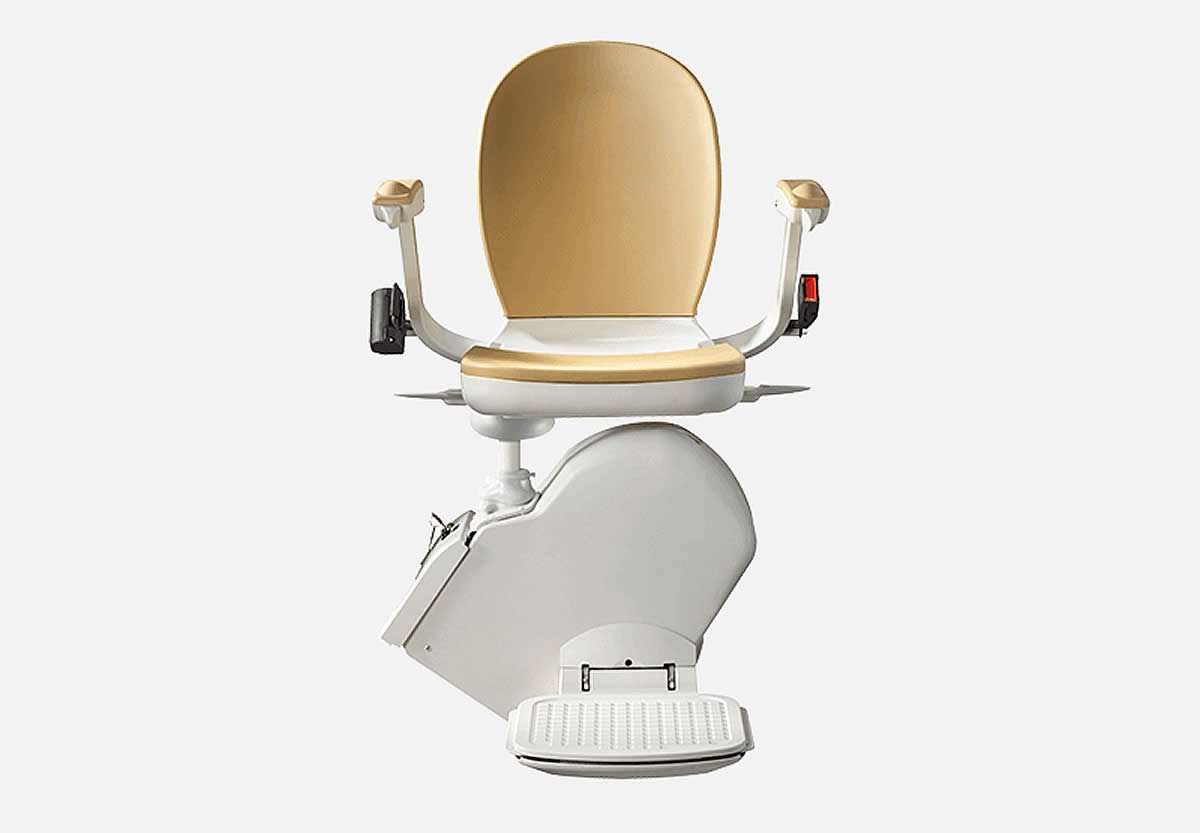

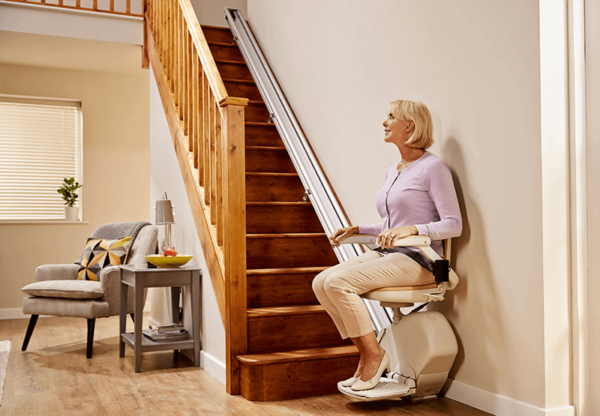

The Acorn 130 Stairlift for straight staircases.
- A straight stairlift for a straight staircase.
- Smooth start and stop mechanism
- Glide effortlessly up and down the stairs.
Description
| Dimensions | inch | |
|---|---|---|
| A | Overall height | 38.5 |
| B | Height of Seat | 17.25 |
| C | Overall depth (from wall) | 22.5 |
| D | Overall depth (when folded) | 12.25 |
| E | Width of footrest | 12.25 |
| F | Overall width | 23.25 |
| G | Depth of seat | 16 |
This stairlift is independently tested to comply with:
- BS EN 81-40:2008 – European safety standard – ‘Specification for powered stairlifts’.
- CE mark – Acorn Stairlift meets the requirements of the applicable European Directive(s).
- ASME compliant for mechanical and electrical hazards – ASME A18.1 and A17.5.
- ISO 9386:2-2000 International standard for stairlifts.
| Specifications | |
|---|---|
| Motor output speed | 120mm/s | 4.8inches per second – No greater than 0.15 meters per second |
| Method of drive | Rack and pinion |
| Power supply | 24V DC (battery) |
| Maximum capacity | 280lbs/127kg |
| Track | Extruded aluminium |
| Mains supply | 50-60Hz, 100-240V ACStraight |
